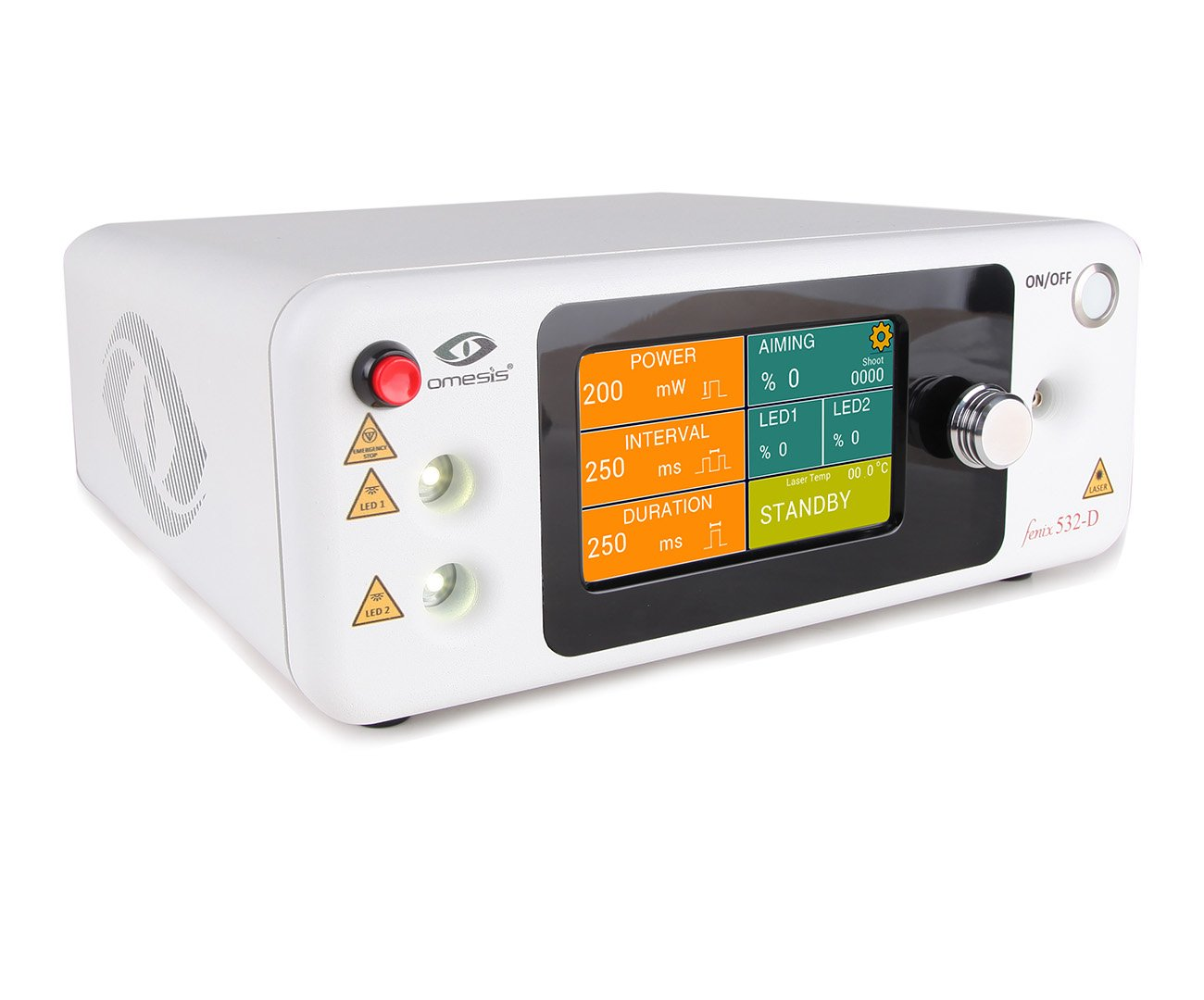

OMESIS Fenix 532-DUO Green Laser

OMESIS Fenix 532-DUO Green Laser

The OMESIS Fenix 532-DUO Green Laser is a high-performance ophthalmic laser system designed for precision eye surgeries. This advanced device utilizes diode-pumped thin disk laser technology to provide reliable and stable laser output for a variety of ophthalmic procedures, ensuring optimal outcomes and enhanced patient safety.

Specifications:

• Wavelength: 532nm
• Laser Output: 3W (software limited to 1.5W for safety)
• Power Stability: <3% (RMS)
• Operation Modes: CW, Pulsed
• Duration: 10ms to 3000ms
• Interval/Pulse Time: 10ms to 3000ms
• Power Increments: 10mW
• Aiming Beam: 640nm visible low power laser (10mW max)
• Aiming Beam Increments: 2 by 2 up to 100
• Cooling System: Air-tec cooling system with silent fan
• Fiber Connector: Special Fenix endolaser probe connection
• Fiber Eccentricity: ≤ 10 µ
• Numerical Aperture: ≥ 0.11
• Integrated LED: 2 independent high-power LEDs
• LED Illumination Intensity Increment: 10 by 10 up to 100
• Input Power: 100-240 Volt AC 50/60Hz, 2.0A fused
• Dimensions: 310mm x 120mm x 291.7mm (W x H x D)
• Weight: 5.8 kg
• Storage Conditions: Temperature -20°C to +70°C, relative humidity 0-90% (no condensation)
• Operation Conditions: Temperature +5°C to +40°C, relative humidity <90% (no condensation)

Endolaser Probes:

• Straight Probes:
  • 20G (Ref No: 510 F)
  • 23G (Ref No: 513 F)
  • 25G (Ref No: 515 F)
  • 27G (Ref No: 517 F)
• Curved Probes:
  • 20G (Ref No: 520 F)
  • 23G (Ref No: 523 F)
  • 25G (Ref No: 525 F)
  • 27G (Ref No: 527 F)
• Illuminated Straight Probes:
  • 20G (Ref No: 510 FI)
  • 23G (Ref No: 513 FI)
  • 25G (Ref No: 515 FI)
  • 27G (Ref No: 517 FI)
• Illuminated Curved Probes:
  • 20G (Ref No: 520 FI)
  • 23G (Ref No: 523 FI)
  • 25G (Ref No: 525 FI)
  • 27G (Ref No: 527 FI)
• Advanced Curved Probes:
  • 20G (Ref No: 530 F)
  • 23G (Ref No: 533 F)
  • 25G (Ref No: 535 F)
  • 27G (Ref No: 537 F)
• Illuminated Advanced Curved Probes:
  • 20G (Ref No: 530 FI)
  • 23G (Ref No: 533 FI)
  • 25G (Ref No: 535 FI)
  • 27G (Ref No: 537 FI)

Applications:

• Ophthalmic Surgeries
• Endoillumination

For additional information and customization options, refer to us.
