Fenix 532-P Green Laser Pattern

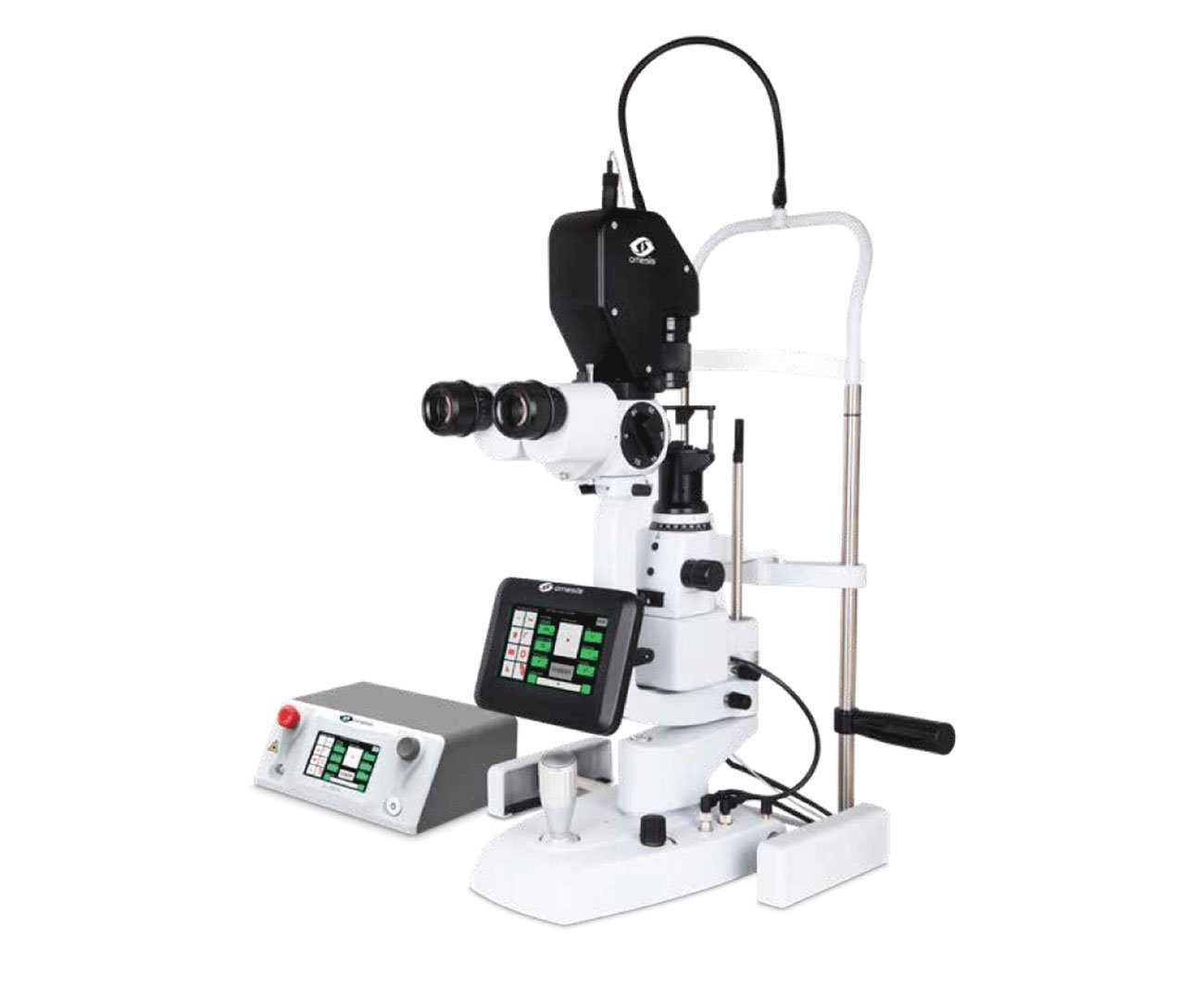

OMESIS Fenix 532-P Green Laser Pattern

The OMESIS Fenix 532-P Green Laser Pattern is a state-of-the-art ophthalmic laser system designed to deliver precise and reliable laser treatments for various eye conditions. Utilizing advanced diode-pumped thin disk laser technology, this device ensures high efficiency, stability, and safety, making it an ideal choice for modern ophthalmic practices.

Specifications:

• Wavelength: 532nm
• Laser Output: 3W (software limited to 1.5W for safety)
• Power Stability: <3% (RMS)
• Operation Modes: CW, Pulsed, Pattern, Semi-Pattern, Marker
• Duration:
  • CW/Pulsed: 10ms to 3000ms
  • Pattern: 10ms to 50ms
  • Semi-Pattern: 10ms to 3000ms
• Interval/Pulse Time:
  • CW/Pulsed: 10ms to 3000ms
  • Pattern: 500ms to 3000ms
  • Semi-Pattern: 10ms to 3000ms
• Power Increments: 10mW
• Aiming Beam: 640nm visible low power laser (≤3mW)
• Aiming Beam Increments: 2% to 100%
• Cooling System: Air-TEC cooling system with silent fan
• Fiber Connector: Special Fenix endolaser probe connection
• Fiber Eccentricity: ≤10µ
• Numerical Aperture: ≥0.11
• Input Power: 100-240 Volt AC 50/60Hz, 2.0A fused
• Dimensions: 278mm x 217mm x 106mm (W x H x D)
• Weight: 3.7 kg
• Storage Conditions: Temperature -20°C to +70°C, relative humidity 0-90% (no condensation)
• Operation Conditions: Temperature +5°C to +40°C, relative humidity <90% (no condensation)
• Laser Class: Class 4

Slit Lamp Delivery Unit Specifications:

• Slit Projections: Offers various spot shapes including single spot, line scanning, square scanning, quarter circle scanning, rectangle scanning, full circle scanning, triangle scanning, and arc scanning.
• Slit Width: Adjustable from 0 to 14mm
• Slit Length: Adjustable from 1.8 to 13mm, with a maximum of 14mm
• Apertures: 14mm, 9mm, 5.5mm, 0.3mm
• Filters: Blue, Red, Green (Ref free)
• Light Diffuser: Available only with digital vision HR
• Background Light: White LED with continuous adjustment up to 248000 LUX
• Microscope: Galilean convergent with magnification change system, eyepiece convergence angle of 6°, adjustable eyepiece (±8 D), magnifications of 6X, 10X, 16X, 25X, 40X
• Microscope Field of View: 41mm to 5.7mm
• Microscope Interpupillary Distance: 50mm to 80mm
• Voltage: 15V DC 1A

Applications:

• Ophthalmic Surgeries
• Endoillumination
• Pattern Laser Treatments

For additional information and customization options, refer to us.
