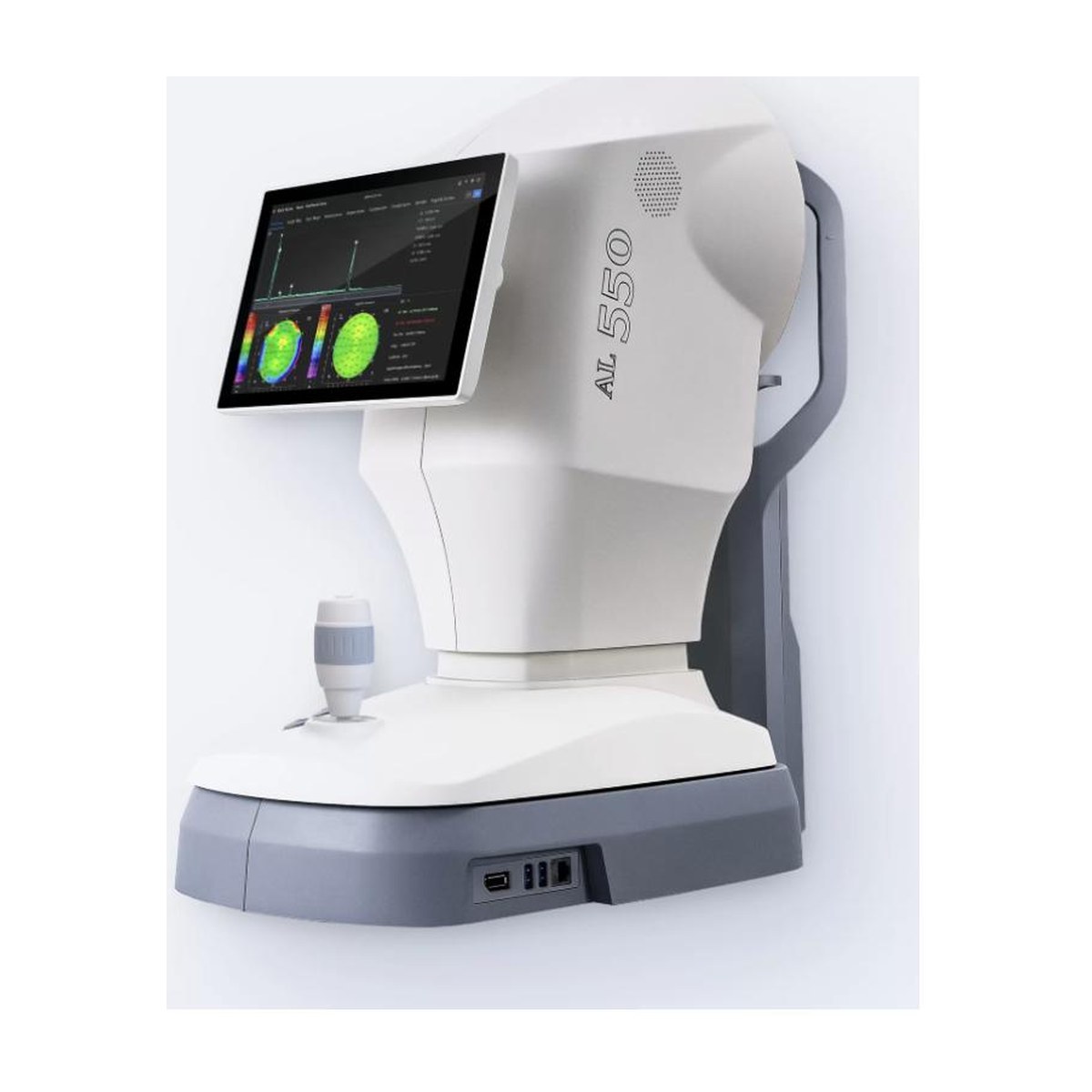

Optical Biometer MediWorks AL550

Optical Biometer MediWorks AL550

Manufacturer: MediWorks, China

Description:
The AL550 is an optical biometer built on optical low-coherence reflectometry at 1,060 nm — a strongly penetrating wavelength that keeps the measurement success rate high even in dense cataract. It integrates a 50-ring Placido disc corneal topography module analysing 125,600 data points on the anterior surface. A single measurement returns up to 22 parameters, and a full binocular examination completes in 60 seconds with full-automatic focus and voice prompts.

Application:
Pre-operative biometry for cataract and refractive cataract surgery: axial length, anterior chamber depth, lens thickness, keratometry and white-to-white for IOL power calculation with built-in Pearl-DGS (optional), Jin, SRK-T, Holladay 1, Hoffer Q and Haigis formulas. In paediatric practice it monitors myopia progression via axial length and AL/CR trend curves.

Categories: ,
Description

Key Features:

  • 1,060 nm wavelength for high measurement success in dense cataract
  • Integrated 50-ring Placido disc corneal topography
  • 125,600 analysed data points across the anterior corneal surface
  • Up to 22 parameters in a single measurement
  • Full-automatic focus with rapid capture and voice prompts
  • IOL formulas: Pearl-DGS (optional), Jin, SRK-T, Holladay 1, Hoffer Q, Haigis
  • Zernike aberrations up to 8th order over 12 mm; Retina Imaging, PSF, MTF
  • AL and AL/CR trend curves with percentile charts for myopia management

Technical Specifications:

  • Principle: optical low-coherence reflectometry, 1,060 nm
  • Axial length: 0–40 mm, accuracy ±10 μm
  • Anterior chamber depth: 0.7–8 mm, accuracy ±10 μm
  • Lens thickness: 1.5–6.5 mm, accuracy ±10 μm
  • Central corneal thickness: 0.2–1.2 mm, accuracy ±10 μm
  • White-to-white: 8–16 mm, accuracy ±0.1 mm
  • Pupil diameter: 1–13 mm
  • Keratometry: 5.5–10.5 mm (±0.02 mm); 32.14–61.36 D (±0.1 D)
  • Corneal coverage: Ø9.8 mm; 18,000 measured points
  • Binocular examination time: 60 s
  • Display: 10.1″ touchscreen; 1 TB storage
  • Dimensions: 307 × 487 × 577 mm; weight 21 kg
  • Power: 100–240 VAC, 50/60 Hz, 100 VA
