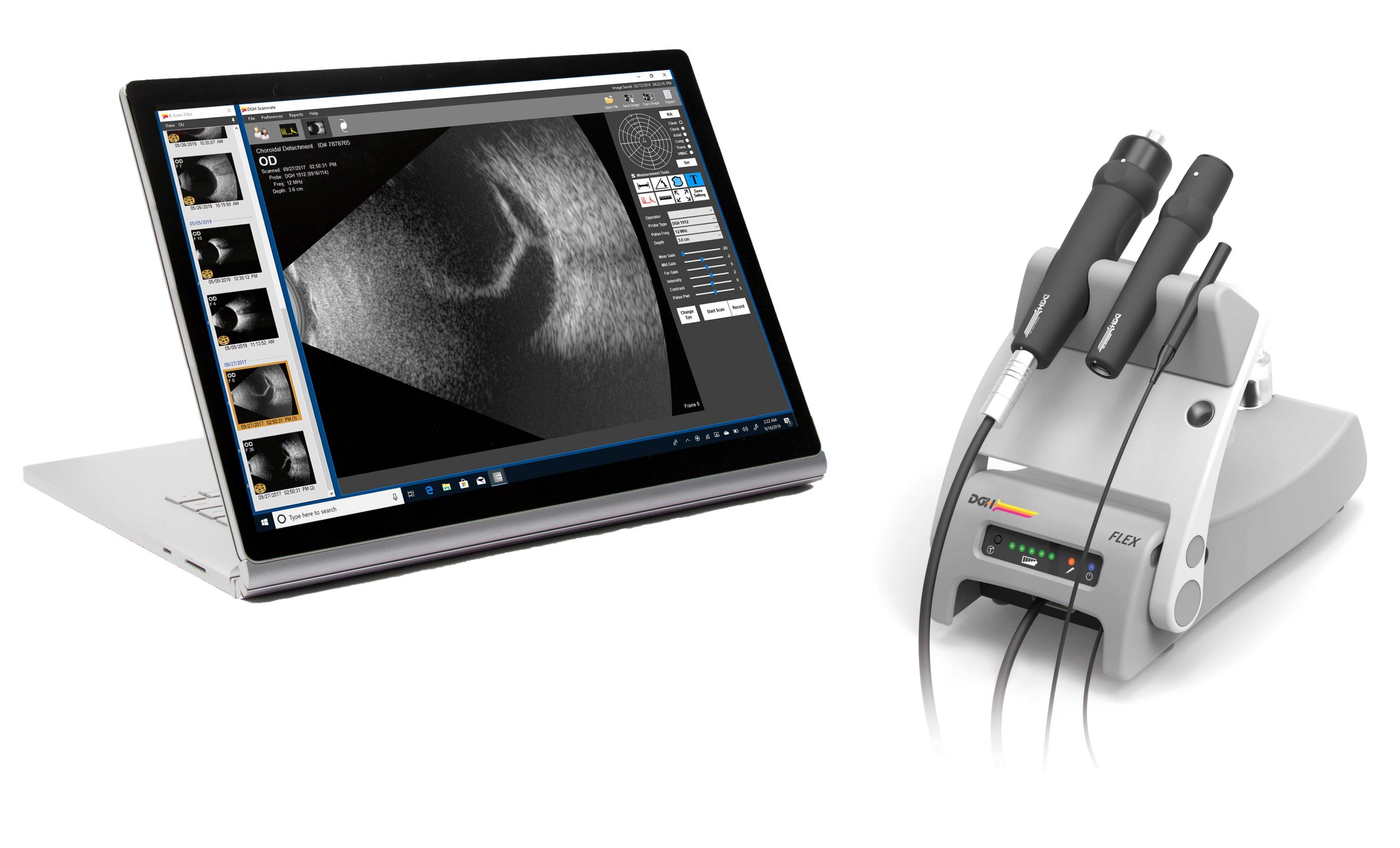

Ophthalmic Ultrasound DGH Scanmate Flex A/B-Scan (10/20 MHz)

Key features:

• Any combination of A-Scan, B-Scan and UBM on one platform
• Plugs into the USB 2.0 port of a Windows computer — no console
• Portable, internal rechargeable battery
• Desktop, wall-mounted or cart deployment
• Scanmate software: searchable patient database with backup
• Unrestricted software license — multiple workstations
• EMR/EHR compatible
• Real-time waveform display
• Customizable report templates (print/PDF)

Technical specifications:

• A-Scan (DGH 6006 probe): 10 MHz
• A-Scan AXL range: 15.0–40.0 mm
• A-Scan ACD range: 2.0–6.0 mm
• A-Scan lens thickness: 2.0–7.5 mm
• A-Scan AXL accuracy: 100 µm (immersion); 180 µm (contact)
• B-Scan (DGH1912/DGH1920 probes): 12.5 MHz / 20 MHz
• B-Scan scan angle: 60°
• B-Scan lateral resolution: 0.5 mm (12.5 MHz); 0.4 mm (20 MHz)
• B-Scan depth of field: 15–30 mm
• Connection: USB 2.0
• Software: Scanmate (Windows 11 x64 supported)
