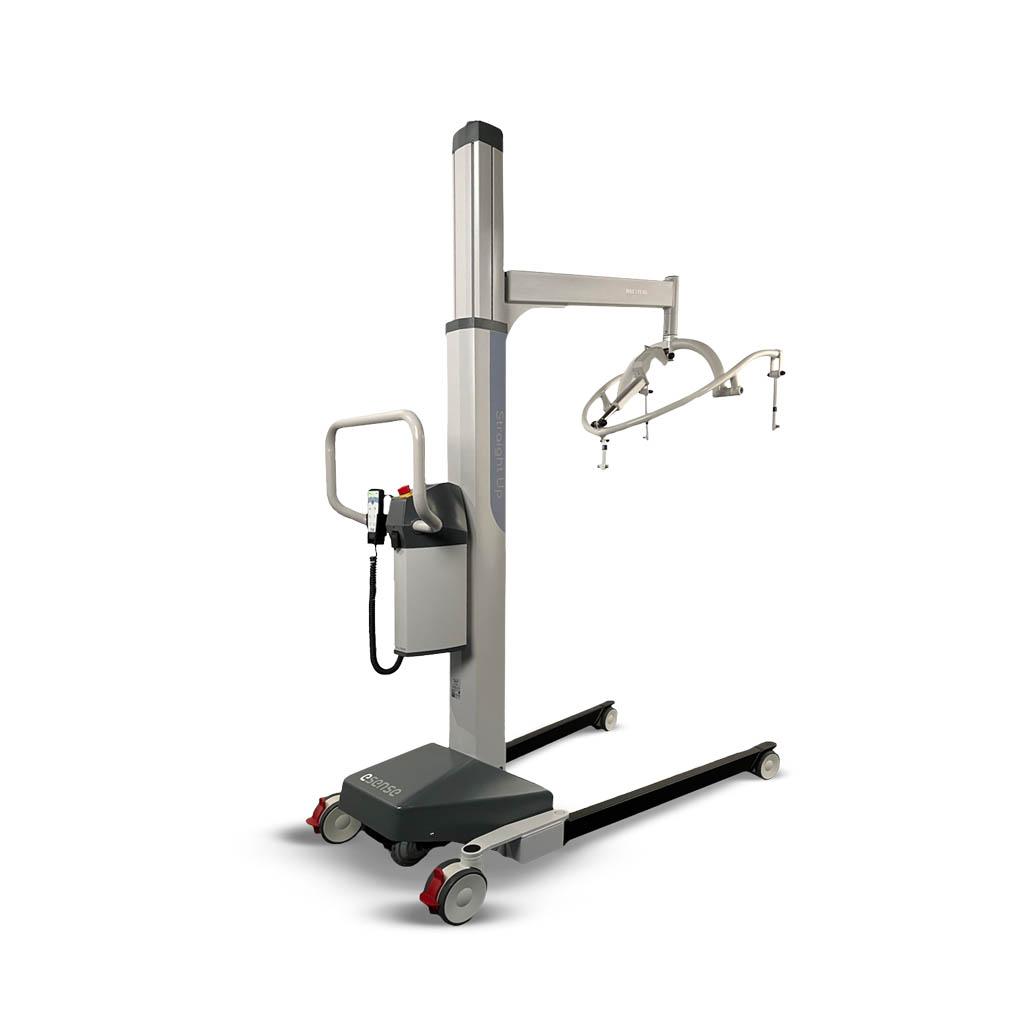

Go Up Esense Active Lifter

Go Up Esense Active Lifter

The Go Up Esense Active Lifter is designed for the safe and efficient lifting and transfer of partially collaborative patients with reduced lower limb mobility. This lifter is ideal for home care, hospital care, retirement houses, nursing homes, rehabilitation centers, and long-stay facilities. Its compact and comfortable design ensures easy maneuverability and patient handling.

Movements:

• Lifting and Lowering: Controlled through dedicated keys on the handset, allowing precise and safe patient handling.
• Leg Adjustment: The width of the legs can be adjusted to get closer to the patient, ensuring stability and ease of use.

Standard Equipment:

• Steel Frame: Painted with thermosetting powders for durability.
• Operator Handlebar: Equipped with a pushing sensor.
• Handles for the Patient: Ensures a secure grip during transfer.
• Twin Wheels: Front wheels with brake (125 mm) and rear wheels (100 mm) for easy maneuverability.
• Rechargeable Battery and Charger: Ensures continuous power supply.
• Emergency Button: For immediate movement lock.
• Handset: Equipped with a coiled cable and large relief pictograms, suitable for visually impaired patients.
• E-drive and Ergo-feedback Systems: Enhances operator safety and ease of use.
• Knee and Tibia Support: Provides additional support for the patient during transfer.
• Output Connector for Data Analysis: Facilitates performance monitoring and analysis.

Accessories:

• Corset Sling: Underarm slings available in various sizes (S, M, L, XL) for easy patient transfer and undressing.
• Sling Attachment Clips: Indicate secure attachment with red (unlocked) and green (locked) signals, compatible with other lifts according to ISO-10535 standards.

Dimensions and Specifications:

• Product Code: GBSL0003 – Go Up Esense, GBSL0004 – Go Up
• Intended Use: Lifting patients with limited mobility
• Power Cable Type: Type L – 16A
• Overall Weight: 180 kg
• Control Type: Handset with coiled cable
• Power Supply: 100-240 Vac 50/60 Hz
• Electric Motors: Low voltage (24V)
• Max Electrical Input: 4A
• Insulation: IP44
• Maximum Load Capacity: 180 kg
• Safe Working Load: 200 kg
