Manufacturer: OCULUS, Germany
Description:

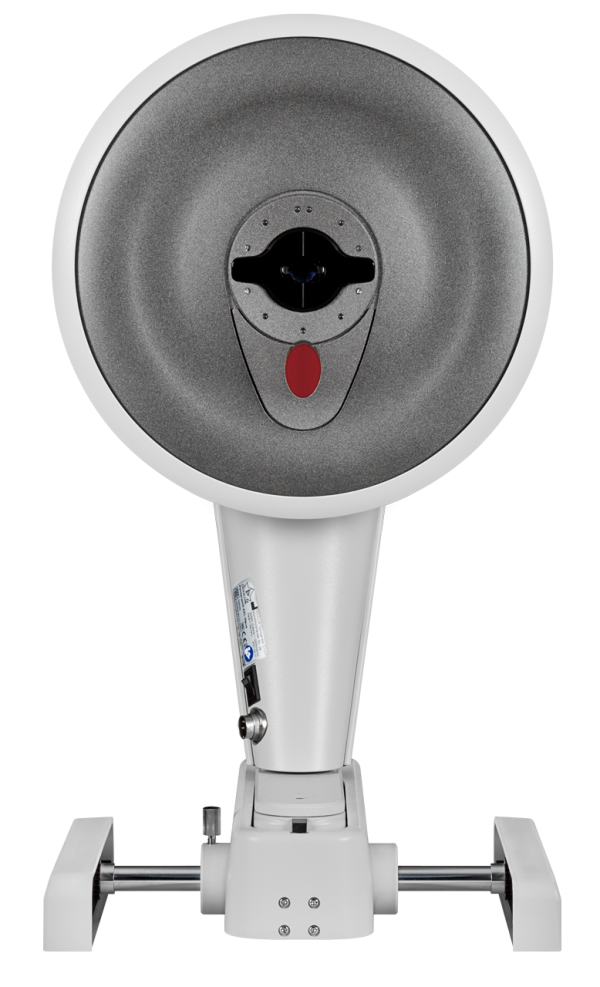

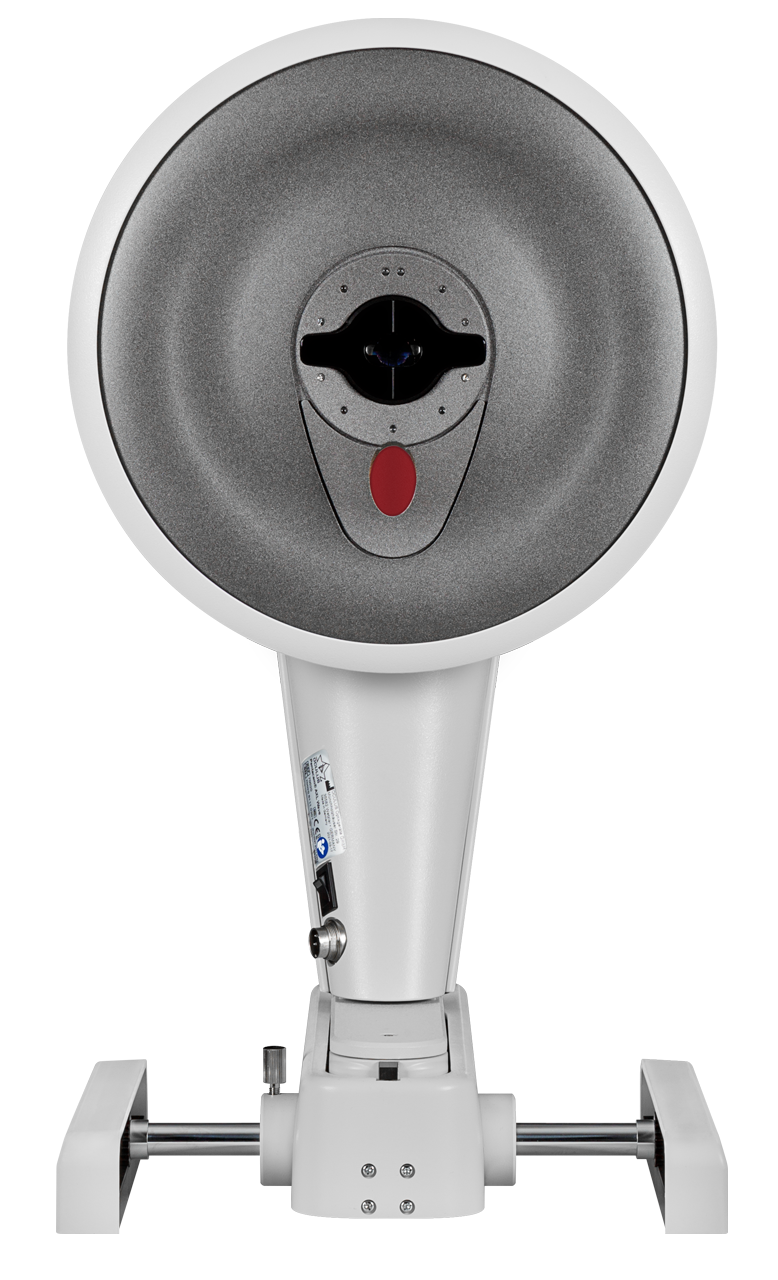

The OCULUS Pentacam® AXL Wave combines five core technologies in one device: Scheimpflug tomography, optical biometry, wavefront aberrometry, retroillumination, and objective refraction. It provides a complete diagnostic picture of the anterior segment, making it ideal for refractive and cataract surgery planning and follow-up.
Application:
The Pentacam® AXL Wave is ideal for modern ophthalmic practices requiring high-level diagnostics for surgical planning and postoperative management. It supports accurate IOL calculations, early detection of corneal disorders, and evaluation of visual quality.
Key Features:
Hartmann-Shack wavefront aberrometry — assessment of optical quality of the full eye.
Objective refraction — precise values for IOL selection and surgical planning.
Retroillumination — visualization of lens opacities and IOL positioning.
Optical biometry — contact-free axial length measurement for accurate IOL power calculation.
Scheimpflug tomography — full corneal and anterior segment mapping.
Technical Specifications:
Camera: CMOS digital camera with blue LED (475 nm, UV-free)
Measurement speed: up to 100 images in 2 seconds
Axial length range: 14–40 mm
Corneal curvature: 3–38 mm (9–99 D), accuracy ±0.1 D
Working distance: 80 mm
Dimensions (W × D × H): 278 × 320–400 × 502–532 mm
Measuring head weight: 9.0 kg
Power supply: 100–240 V, 50–60 Hz
Max power consumption: 85 VA
Recommended PC: Intel Core i5, 1 TB HDD, 8 GB RAM, Windows 11 Pro/Enterprise
