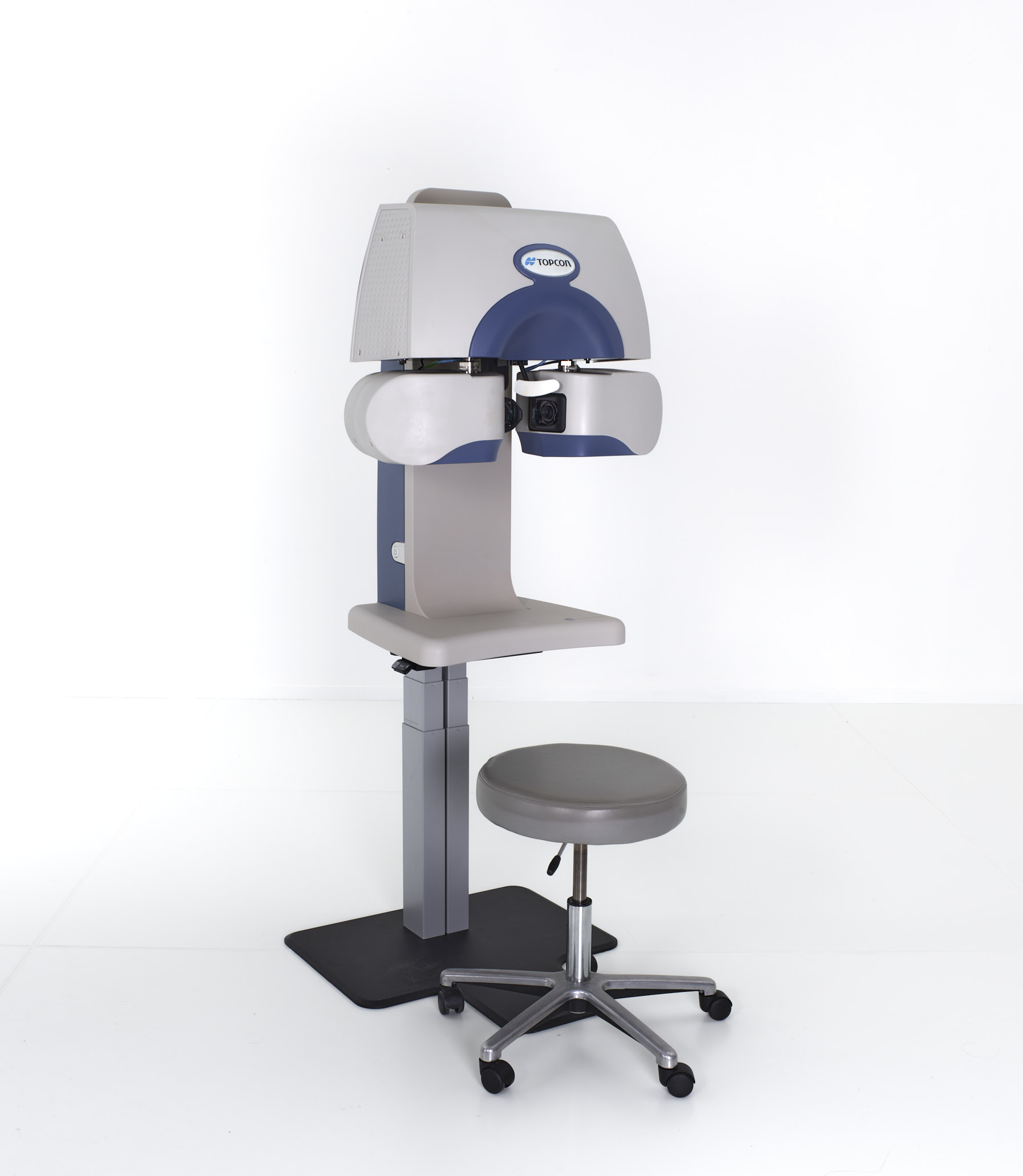

Binocular Refraction System Topcon Chronos

Manufacturer: Topcon, Japan

Description:
Chronos is an automated binocular refraction system that consolidates binocular autorefraction, keratometry, subjective refraction and visual acuity testing into a single compact instrument. It runs SightPilot guided refraction software, which steps the operator through the whole exam based on patient responses, so upfront refraction and acuity testing can be delegated to a technician. Optional SightPilot NAVi provides fully automated, patient-prompted refraction while retaining physician oversight.

Application:
A complete pre-exam and refraction station, replacing a separate autorefractor/keratometer, phoropter, chart projector and refraction lane. It supports spectacle and contact lens refraction, binocular balance and prism testing, and near/intermediate vision assessment.

Categories: ,
Description

Key Features:

  • Combines autorefraction, keratometry, subjective refraction and visual acuity in one instrument
  • SightPilot guided refraction software walks the operator through the entire exam
  • Optional SightPilot NAVi delivers fully automated, patient-prompted refraction
  • Binocular measurement head with independent right/left movement
  • Space-saving footprint removes the need for a conventional refraction lane
  • Doctor reviews all refraction and acuity data before entering the exam room
  • Simulated real-world test distances from near through 20 ft

Technical Specifications:

  • Objective sphere: −25 D to +22 D
  • Objective cylinder: −10 D to 0 D
  • Cylinder axis: 1° to 180°
  • Corneal curvature radius: 5.00–10.00 mm; corneal power 67.50 D to 33.75 D
  • Minimum measurement step: 0.12 D
  • Minimum measurable pupil diameter: Ø2.0 mm
  • PD measurement: 50–80 mm, 0.5 mm steps
  • Subjective sphere: −18.00 D to +18.00 D; cylinder −8.00 D to 0.00 D
  • Prism: horizontal ±15.0Δ, vertical ±2.5Δ per eye
  • Test distance: 25 cm to 6.096 m; visual acuity 0.05 to 1.6
  • Chart background luminance: 155 ±15 cd/m²
  • Dimensions: 671–766 × 278–357 × 510–540 mm; weight 31.2 kg
  • Power: AC 100–240 V, 50–60 Hz, 160 VA
