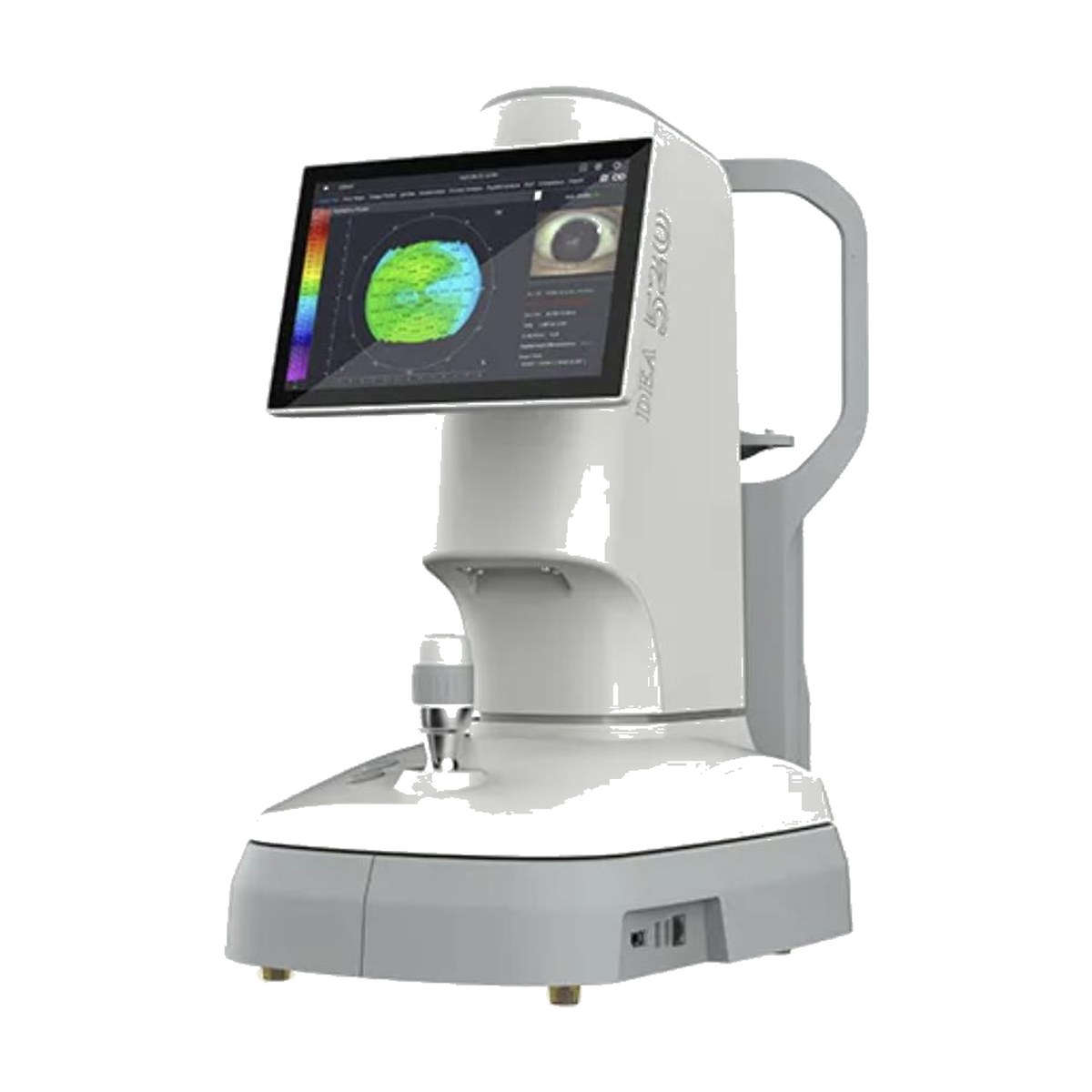

Corneal Topographer and Dry Eye Analyzer MediWorks DEA520

Manufacturer: MediWorks, China

Description:
The DEA520 is a “2 in 1” multi-purpose instrument integrating corneal topography and a complete dry eye workup. It uses a 50-ring Placido disc with three light sources (white, infrared and cobalt-blue) and delivers 14 integrated examinations on a 10.1″ 2048 × 1536 touchscreen.

Application:
A complete non-invasive dry eye examination: questionnaires (OSDI, SPEED, McMonnies, DEQ-5), NIBUT, tear meniscus height, lipid layer thickness, meibography, blink quality, conjunctival redness and fluorescein staining. The topography channel provides curvature, elevation and refractive power maps for keratoconus assessment and orthokeratology, RGP and soft contact lens fitting.

Categories: Diagnostics, Ophthalmology

Description

Key Features:

2-in-1 platform: corneal topography plus a full dry eye workup
50-ring Placido disc topography
Three light sources: white, infrared and cobalt-blue
14 integrated examinations incl. NIBUT, tear meniscus, lipid layer, meibography
Four map types: sagittal and tangential curvature, elevation, refractive power
Aberration analysis and visual-quality simulation module
Contact lens fitting module with case comparison and follow-up
10.1″ touchscreen, WiFi/wired networking, 1 TB storage

Technical Specifications:

Placido rings: 50
Keratometry: 32.14–61.36 D (5.5–10.5 mm), accuracy ±0.1 D (±0.02 mm)
Projection area diameter: 8.8 and 11 mm
Astigmatism axis: 0–180°
Pupil diameter: 1–13 mm; white-to-white: 1–20 mm
Tear meniscus height: 0.01–2 mm
Display: 10.1″, 2048 × 1536
Movement range: 0–90 / 0–60 / 0–30 mm
Dimensions: 49 × 31 × 54 cm; weight 16.1 kg
Power: 100–240 VAC, 50/60 Hz; 1 TB hard disk
